FUNCTIONAL MATERIALS

The most reliable 3D printing materials developed by CARIMA

HTR YELLOW

MATT WHITE

MICRO 150

PROFESSIONAL GRAY

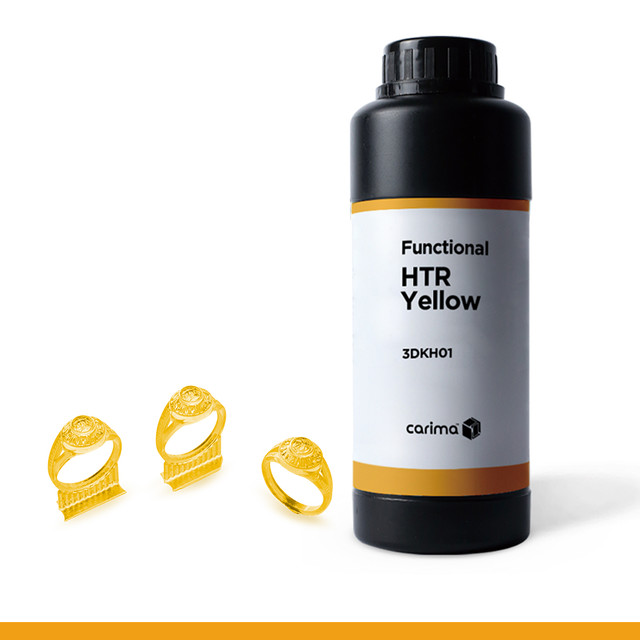

 HTR YELLOW

  3DKH01


  • Heat tolerance up to 300 ̊C
  • High hardness & tensile strength
  • Optimized for Jigs & Heat-resistant
Product Specification
Tensile Strength
63MPa
Young's Module
6300MPa
Elongation
1%
Hardness 82D
Viscosity
800cP
Heat deflection temperature(1.82MPa [ ̊C])174 ̊C

FUNCTIONAL MATERIAL

The most reliable 3D printing materials

developed by CARIMA

HTR YELLOW

MATT WHITE

MICRO 150

RPOFESSIONAL GRAY

HTR YELLOW

3DKH01


  • High stiffness after curing
  • Transparent resin
  • Fast printing speed
  • Optimized for Figure, Models, Prototyping
Product Specification
Tensile Strength63MPa
Young's Module6300MPa
Elongation
1%
Hardness82D
Viscosity800cP
 Heat deflection
temperature(1.82MPa [ ̊C]
174 ̊C

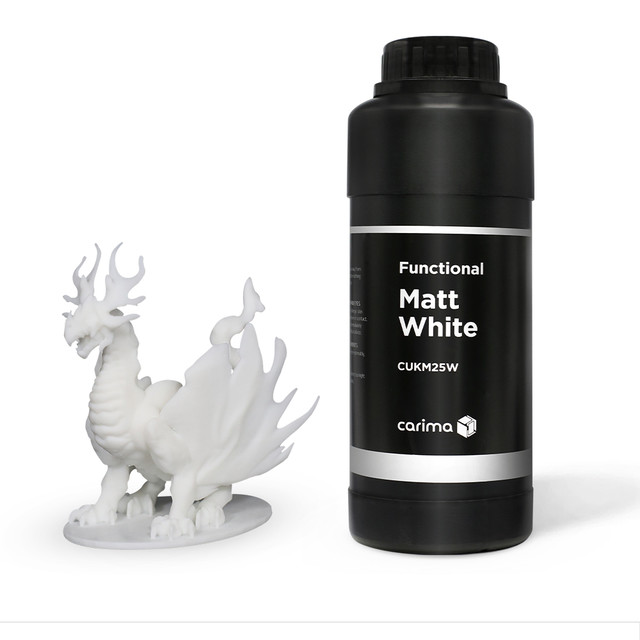

MATT WHTIE

CUKM25W


  • Soft texture & smooth surface
  • Non-yellowing matt white resin
  • Optimized for Medical models, Education, Figure, Prototyping
Product Specification
Tensile Strength53MPa
Young's Module1916MPa
Elongation
6%
Hardness83D
Viscosity312cP

MICRO 150

CUKH15G



  • High detailed surface
  • High hardness & transparent resin
  • 200μm Channel width
  • Optimized for Micro Fluidic Device
Product Specification
Tensile Strength40MPa
Young's Module1000MPa
Elongation
10%
Hardness83D
Viscosity350cP

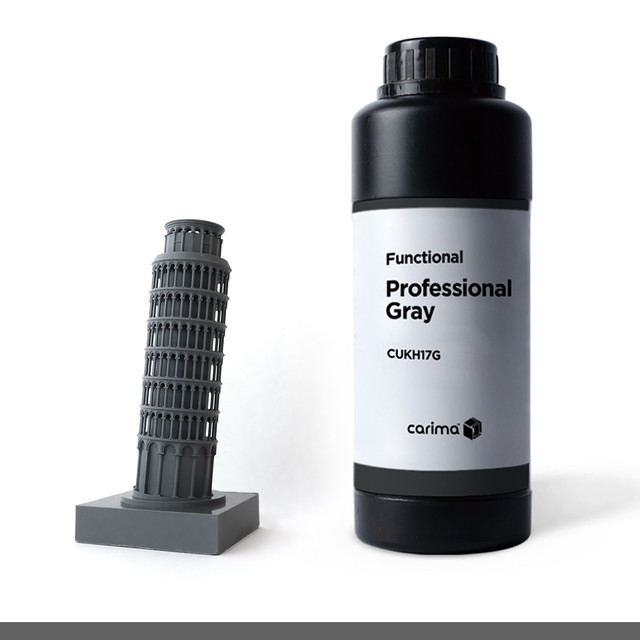

PROFESSIONAL GRAY

CUKH17G


  • Soft texture
  • Fast printing speed
Product Specification
Tensile Strength55MPa
Young's Module
1700MPa
Elongation
4%
Hardness82D
Viscosity180cP

  MATT WHITE

    CUKM25W


  • Soft texture & smooth surface
  • Non-yellowing matt white resin
  • Optimized for Medical models, Education, Figure, Prototyping
Product Specification
Tensile Strength 53MPa
Young's Module 1916MPa
Elongation 6%
Hardness 83D
Viscosity
312cP

  MICRO 150

    CUKH15G


  • High detailed surface
  • High hardness & transparent resin
  • 200μm Channel width
  • Optimized for Micro Fluidic Device
Product Specification
Tensile Strength 40MPa
Young's Module 1000MPa
Elongation 10%
Hardness 83D
Viscosity
350cP

  PROFESSIONAL GRAY

    CUKH17G


  • Soft texture
  • Fast printing speed
Product Specification
Tensile Strength
55MPa
Young's Module
1700MPa
Elongation
4%
Hardness
82D
Viscosity
180cP
