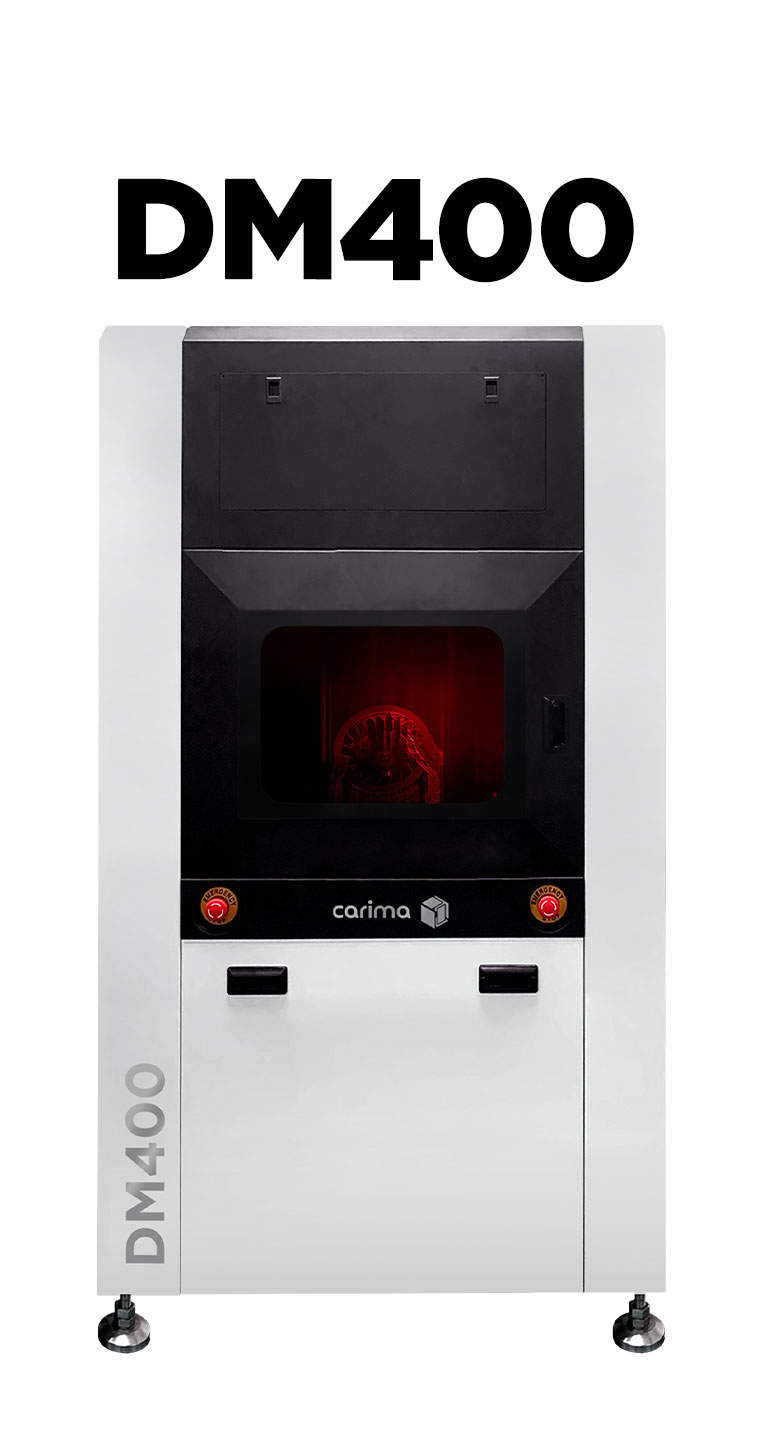

DM400

The CARIMA DM400 is the World's Largest Top-down Industrial DLP 3D printer with the 'S-BAT'.

And it provides an extremely large build volume(420x380x400mm) and the greatest material properties without sacrificing surface finish and precision. Especially, DM400 is optimized for high viscosity(~10,000cP) resin printing, and its top-down design enables users can easily produce unlimited part sizes with in the build volume at high speed, enabling mass production of multiple types.

OUTPUT


Optimized for the output of high-viscosity(10,000cP) and high-strength functional materials such as rubber likes, it meets the needs of a wide range of industries.

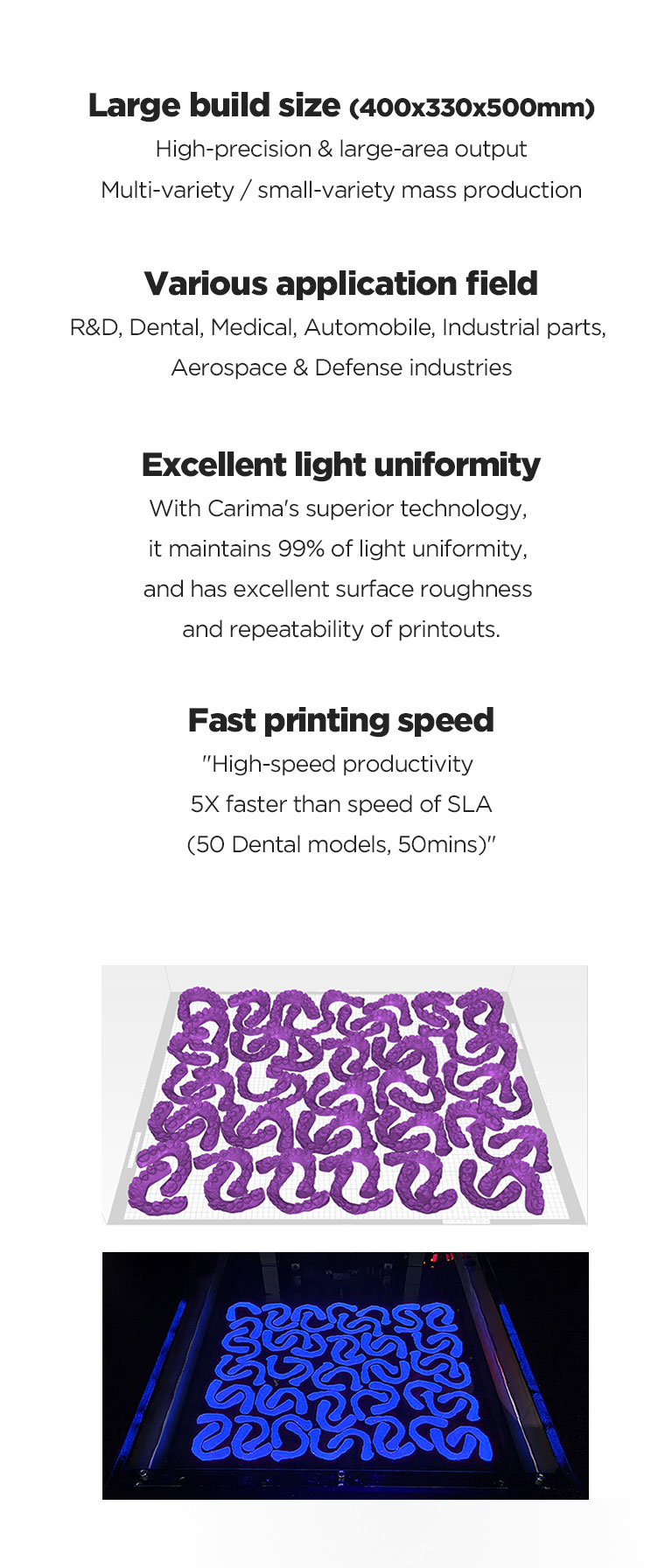

High-speed mass production


- More than 6x faster output than

- Largest Build size for DLP 3DPs


Excellent light uniformity


Dual DLP engine nesting technologies
'S-BAT'(Seamless Boundary by Alignment Technology) Ensuring perfect photouniformity in all optical irradiation surfaces


Optimized output of High-performance materials(rubber, silicone, ceramic composite, etc.)


High viscosity(10,000cPs) materials that cannot be printen on other equipment can be used


Automatic Post-processing Device

(Optional)


Removal + Washing + Drying + Curing + Collection

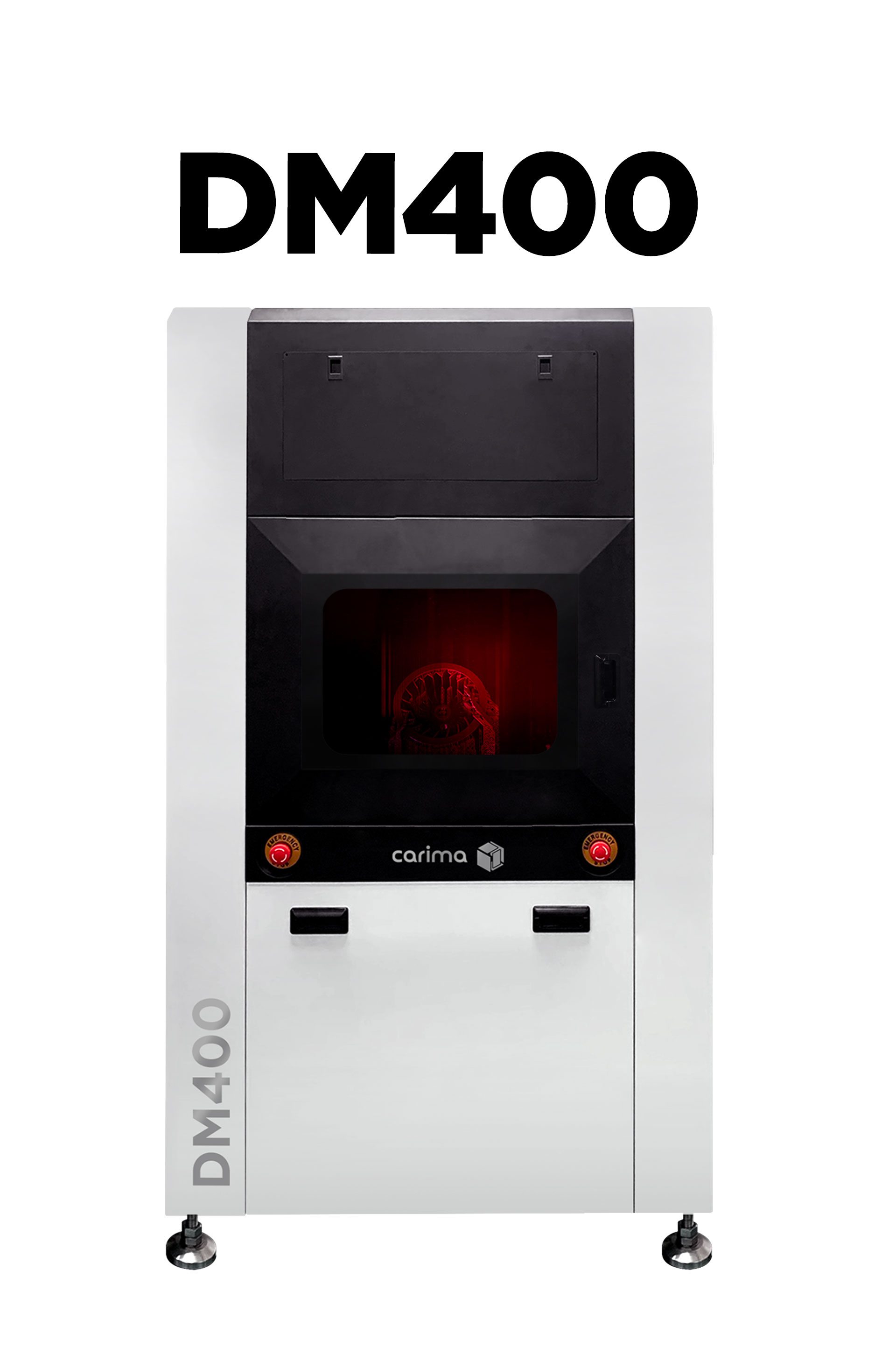

DM400

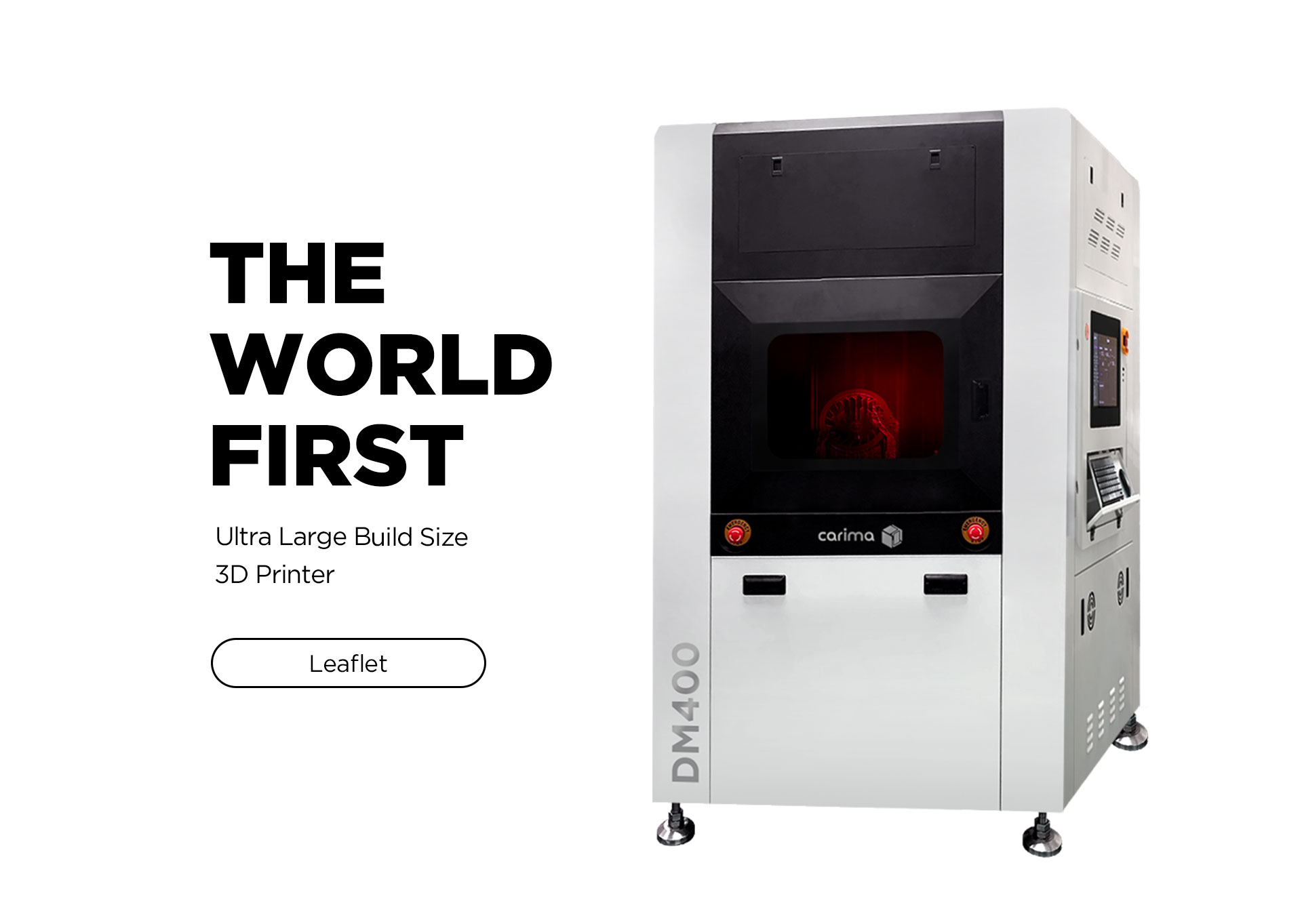

DM400 is the World's First Large-area, Top-Down Industrial DLP 3D Printer with Dual DLP engine nesting Technology 'S-BAT' that enables mass production of a large number of products, especially the Top-Down structure that makes it easy to print large and heavy models without failure. In addition, it is optimized for the output of not only High-strength and Heat-resistant materials, but also High-viscosity materials such as Rubber-like and silicone and is used in various industries.

The DM400 uses minimal manpower and space with just one machine, which offers significant cost and time savings over desktop equipment. Users can experience the ability to print multiple dental models efficiently, quickly and safely.

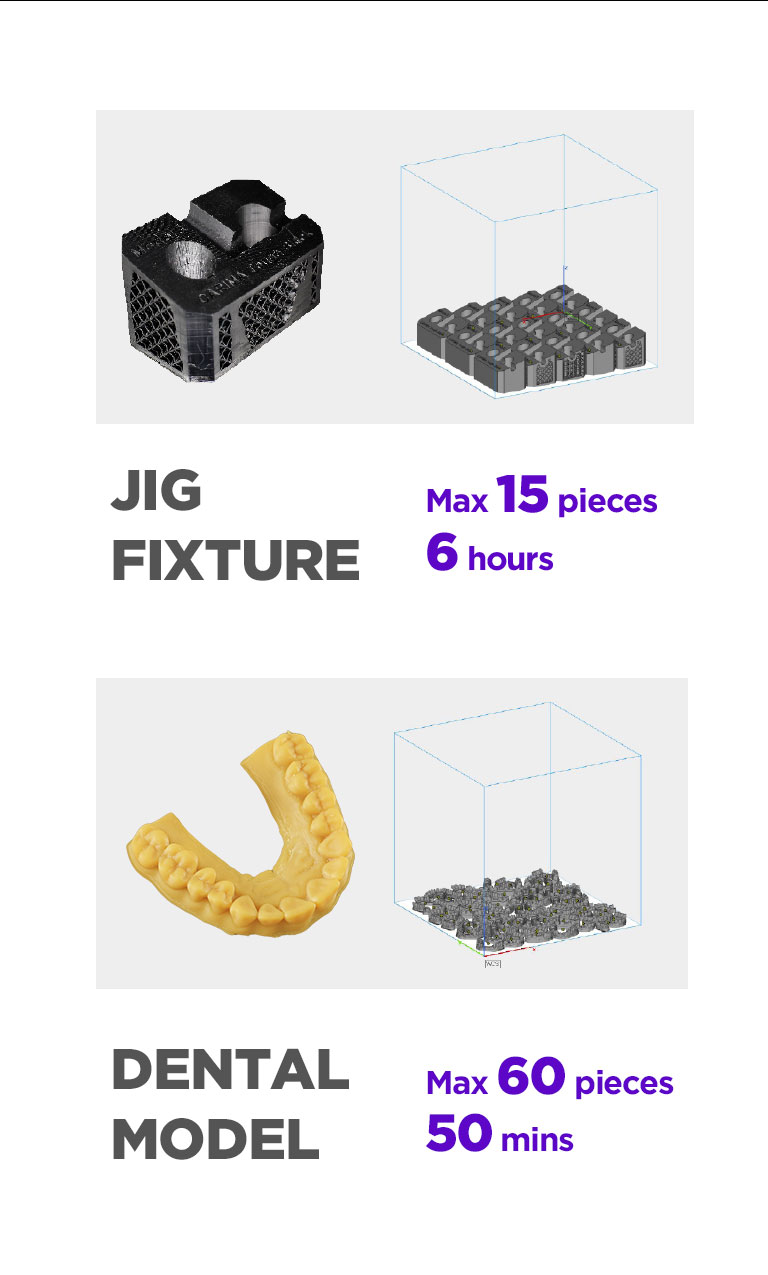

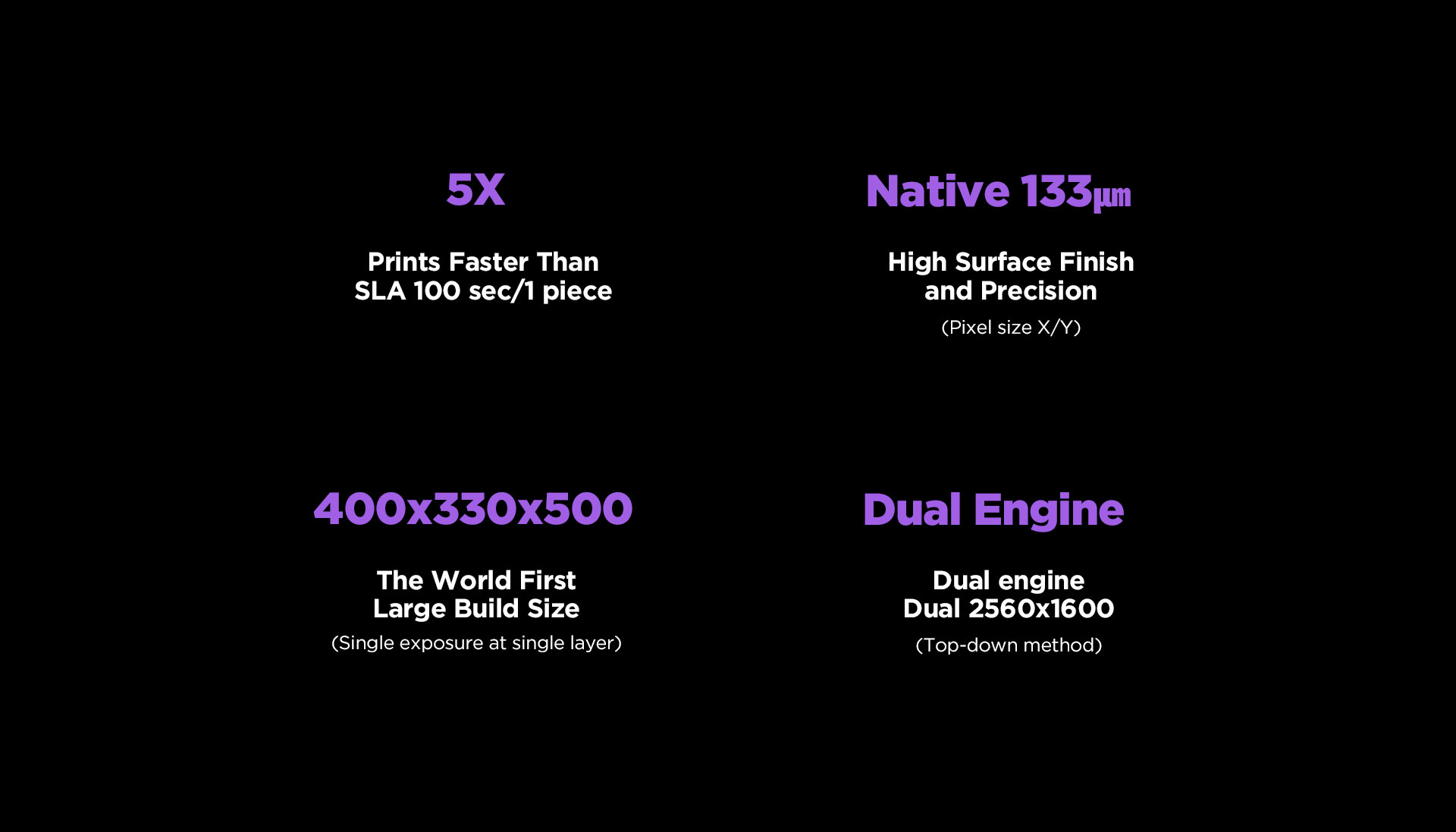

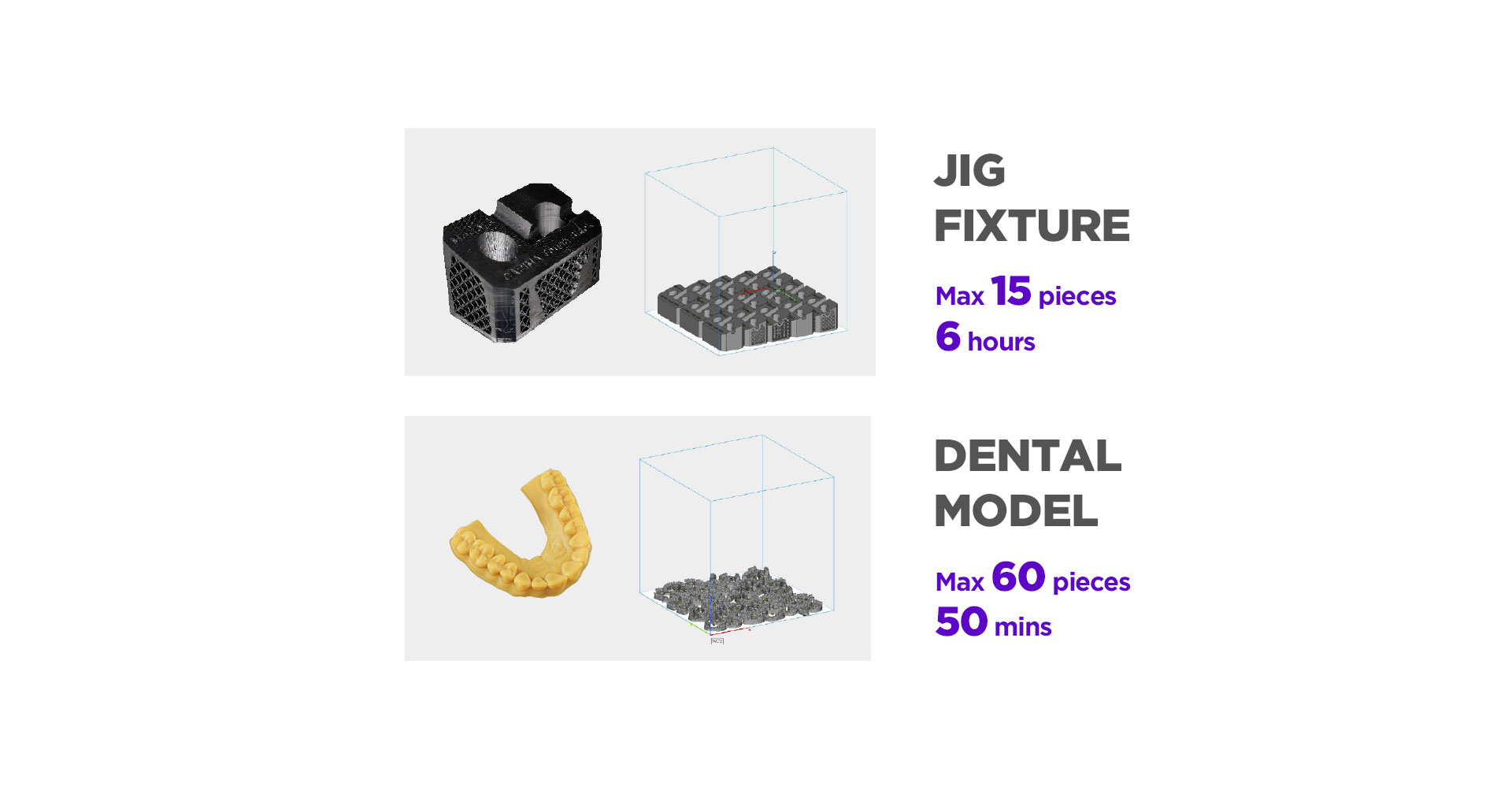

High-speed mass production

- More than 6x faster output than SLA

- Largest Build size for DLP 3DPs


Excellent light uniformity

Dual DLP engine nesting technologies‘S-BAT’(Seamless Boundary by Alignment Technology)

Ensuring perfect photo uniformity in all optical irradiation surfaces


Optimized output of high-performance materials

(rubber, silicone, ceramic composite, etc.)

High viscosity (10,000 cPs) materials that cannot be printed on other equipment can be used


Freedom from Gravity

Top-down structure enables stable output of large and heavy prints without failure

[Failure rate: 0.01% (Successes: 100,000 / Failures: 10)]


Automatic Post-processing Device(*Optional)

Removal + Washing + Drying + Curing + Collection


SPECIFICATION

420 x 380 x 400mm

420 x 380 x 200mm(for Dental)

Build Volume(W/D/H)


100μm

Pixel Size(X/Y)


50, 75, 100, 125, 150μm

Layer Thickness


385, 405nm UV LED

Light Source


Dual 4K

Resolution



SPECIFICATION

420 x 380 x 400mm

420 x 380 x 200(for Dental)


Build Size(W/D/H)


50, 65μm

Pixel Size(X/Y)


30, 50, 100, 150, 200μm

Layer Thickness


385, 405nm FHD UV LED

Light Source


4K UHD LED 3840 x 2160

Resolution
