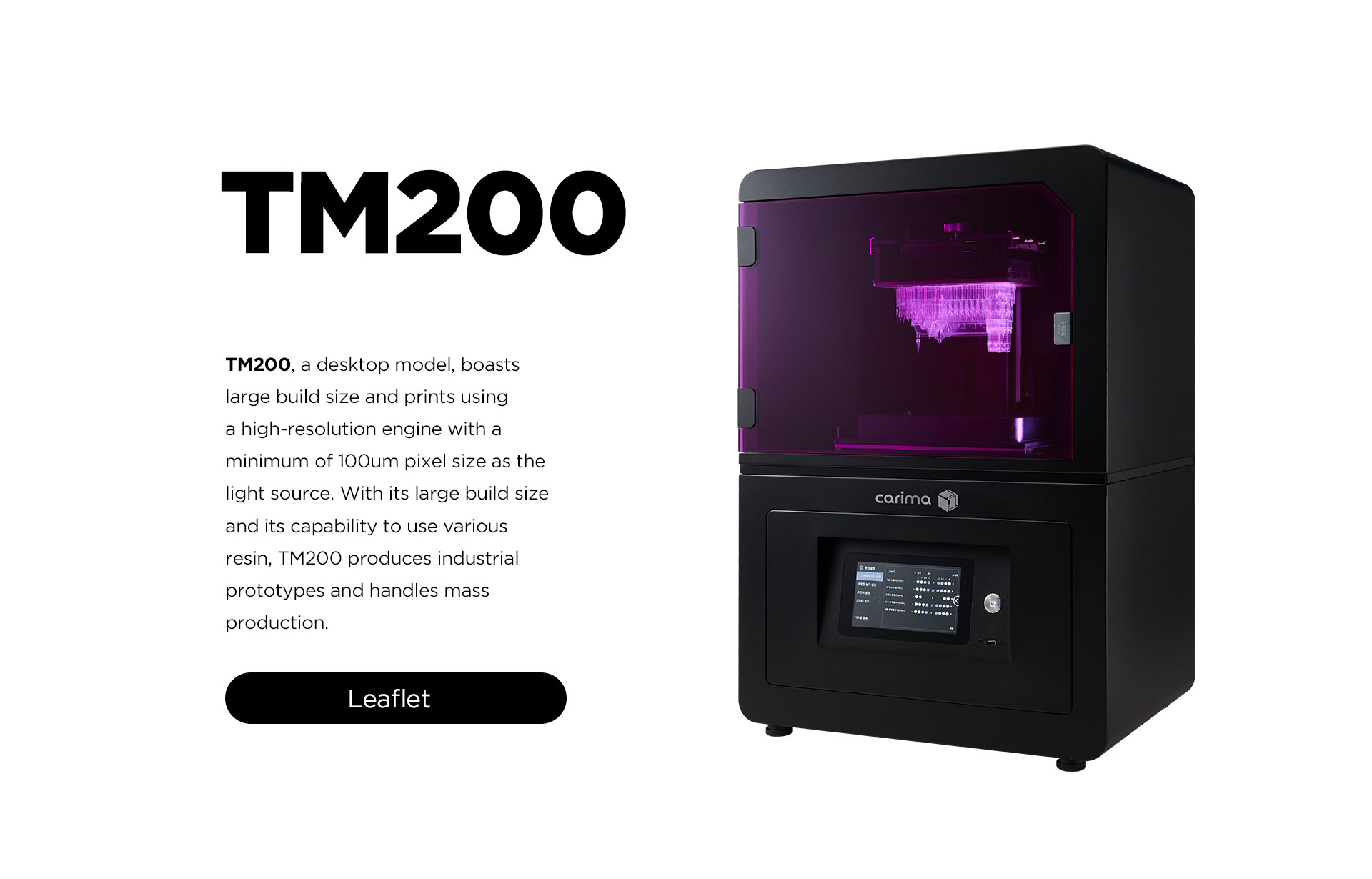

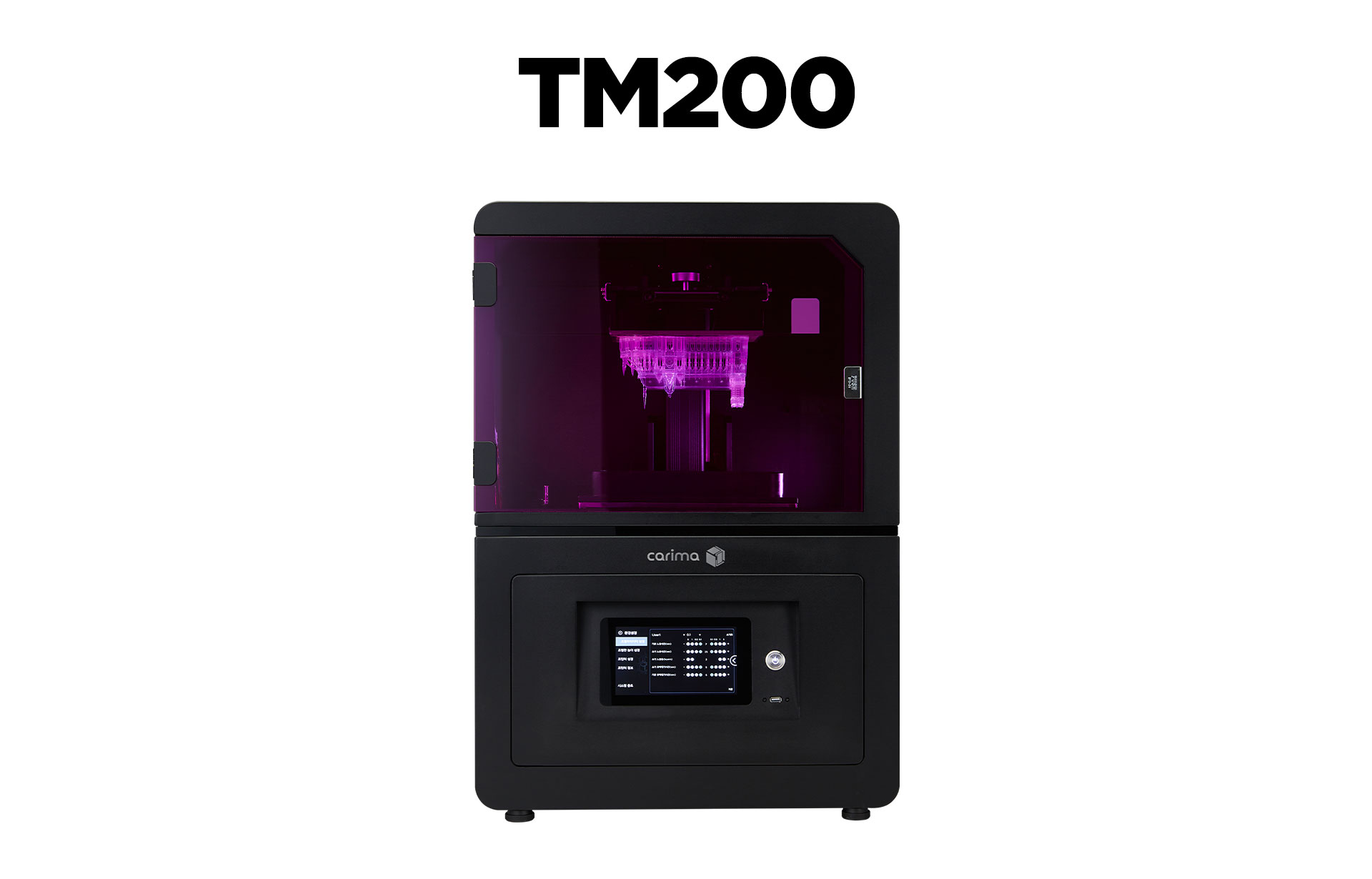

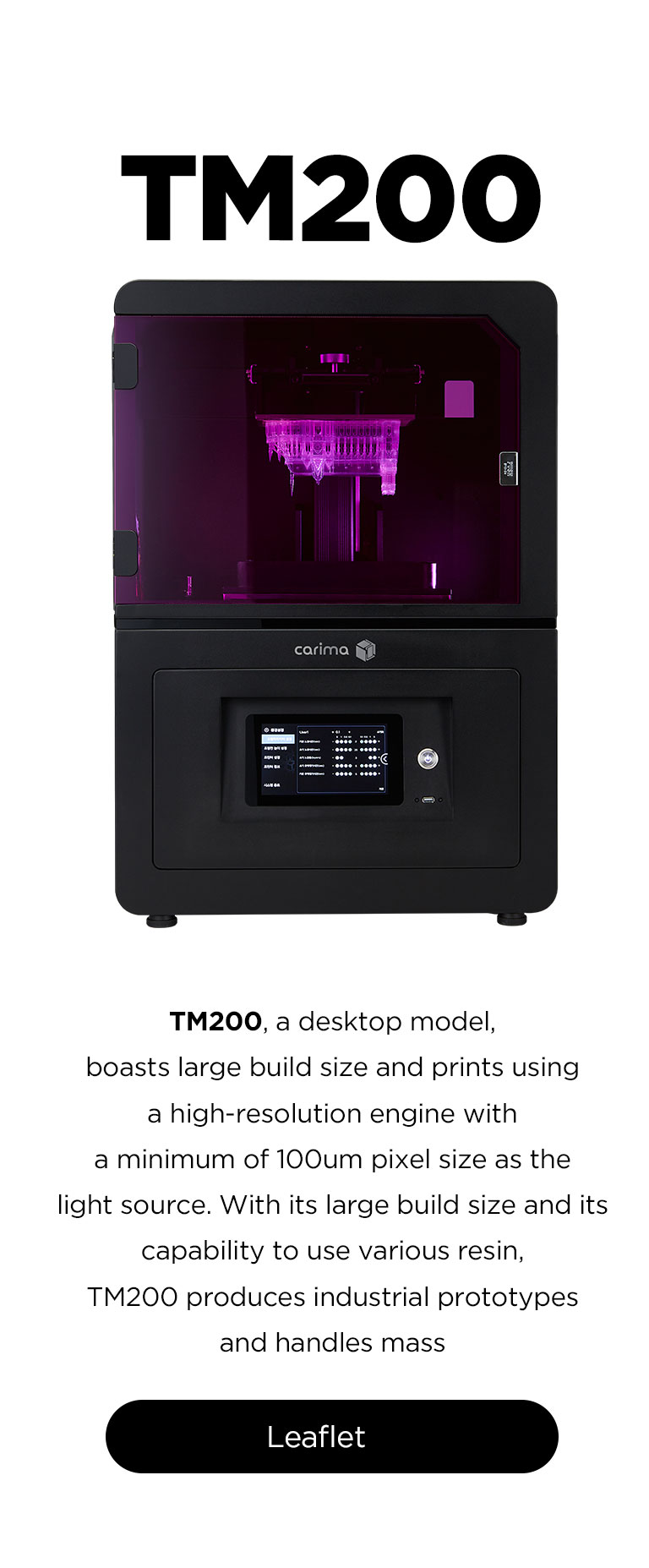

TM200


TM200, a desktop model,

boasts large build size and prints using

high-resolution engine with a

minimum of 100um pixel size as the light source.

With its large build size and

its capability to use various resin,

TM200 produces industrial prototypes

 and handles mass production.



TM200


TM200, a desktop model, boasts large build size and prints using high-resolution engine with a minimum of 100um pixel size as the light source.

With its large build size and its capability to use various resin, TM200 produces industrial prototypes and handles mass production.


192 x 108 x 200

Build Size(mm)


100μm

Pixel Size(X/Y)


25, 50, 100μm

Layer Thickness


385, 405nm UV LED

Engine Light Source


FHD UV LED 1920 x 1080

Engine Resolution

192 x 108 x 200

Build Size(mm)


100μm

Pixel Size(X/Y)


25, 50, 100μm

Layer Thickness


385, 405nm UV LED

Engine Light Source


FHD UV LED 1920 x 1080

Engine Resolution

LARGER BUILD PLATFORM
THAN IM2

Industrial desktop printer
192 x 108 x 200mm printing size
Enable to print various output at once
Save your time(Time-efficiency, x4 faster print time than IM2


NOT ONLY BIG BUT PRECISION

X/Y 0.1mm pixel size with large build size

by Full-HD resolution DLP engine.
Available from 0.025 to 0.1 layer thickness
More sharpness and better surface roughness




Materials for TM200

General
Nontoxic CMYK / Clear

General
Standard
(Black/Gray/Green/Beige/Ivory)

LARGER BUILD PLATFORM

THAN IM2


Industrial desktop printer
192 x 108 x 200mm printing size
Enable to print various output at once
Save your time

(Time-efficiency, x4 faster print time than IM2)



NOT ONLY BIG BUT PRECISION

X/Y 0.1mm pixel size with large build size

by Full-HD resolution DLP engine.
Available from 0.025 to 0.1 layer thickness
More sharpness and better surface roughness



Materials for TM200

General

Nontoxic CMYK / Clear


General

Standard

(Black/Grey/Green/Beige/Ivory)


Software


for 3D Printing and Additive Manufacturing

as known as AM, boasts its user friendly UI for individual purpose. It also indicates each process for high efficient AM and 3D Printing workflow


The perfect curing

Supports maximum height of 200mm for curing work

and Minimizes thermal deformation using UV LED lamp.

Software


Carima Slicer V2 and Magics for Carima is an

Additive Manufacturing(AM) software and boasts its user-friendly UI.

Experience convenient slicing software specialized for DLP 3D printers.


Perfect Curing


Supports maximum height of 200mm for curing work

and minimizes thermal deformation using the UV LED lamp.
